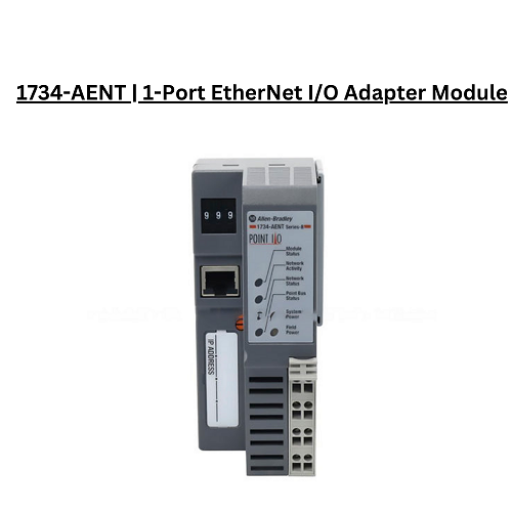

Allen-Bradley 1734-AENT, POINT I/O Ethernet Network Adapter

Manufacturer- Allen Bradley
Product Type- Communications
Product Line- Point I/O 1734
Part Number- 1734-AENT
Weight- 0.50 lbs (0.23 kg)
Inrush Current- 6 Amps
Module Type- Ethernet Adapter Module
Product Family- 1734 POINT I/O
No. of Ports- 1
I/O Module Capacity- 63 modules
I/O Points, max.- 504
Communication Rate- 10/100 Mbits/s, half or full-duplex.
Supported Topologies- Star / Tree topologies
Indicators- 3 red/green status indicators (on CPU): – Module status – Network status – POINTBus status 1 green status indicator on CPU: – Network activity 2 green power supply status indicators on DC-DC Converter: – System power (5V DC to POINTBus Out) – Field power (24V DC from Field In)
Topologies- Star, Tree
Field Side Power- 400 milliamps
Power Consumption- 10.4 W @ 28.8V DC
POINTBus Current- 1000 milliamps
Power Dissipation- 5.2 Watts (at 28.8 Volts)
Series- POINT I/O
Input Voltage Rating- 24 Volts DC
Enclosure Type- Open
Ethernet Connector- RJ-45, Category 5
Wire Size- 3/64 inches insulation max
Chassis Size- 4
Input Overvoltage Protection- Reverse Polarity Protected
Isolation Voltage- 50 Volts (Continuous)
Maximum Expansion I/O Capacity- 63 Modules, 31 Direct Connections
Mounting- DIN rail
