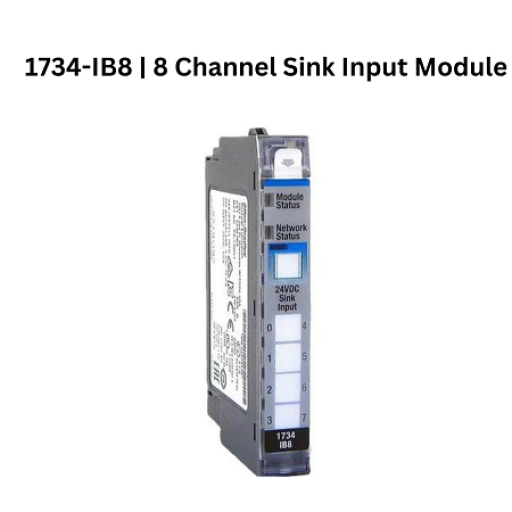

Allen Bradley 1734-IB8, 8 Channel Sink Input Module

1734-IB8 has 8 Channel Sink Input Module. Minimum, normal and maximum on-state voltage is 10V DC, 24V DC and 28.8V DC respectively. Minimum on-state current voltage is 2mA and maximum on-state current voltage is 5mA. While maximum off-state voltage is 5V DC. Weight of 1734-IB8 Input Module is approximately 32.3 g (1.14 oz). Indicators input status is 8 yellow. Maximum Power dissipation @ 28.8V DC is 1.6 W and maximum thermal dissipation @ 28.8V DC is 5.5 BTU/hr. Nominal field power supply voltage is 24V DC. 1734-IB8 Input Module has open-style enclosure type rating.
