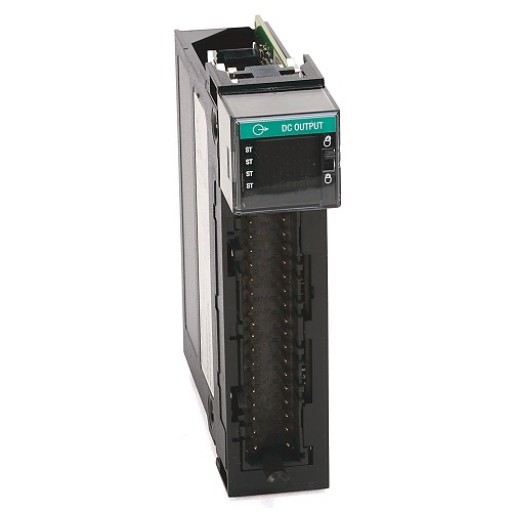

Allen Bradley 1756-OB32, ControlLogix Discrete output module

* Manufacturer- Allen Bradley
* Category- PLCs
* Product Line- ControlLogix
* Part Number- 1756-OB32
* UPC- 662468702997
* Weight- 0.56 lbs (0.26 kg)
* Outputs- 32-Point
* Module Type- DC Output Module
* Voltage- 12-24 Volts DC Source
* Operating Voltage Range- 10-31.2 Volts DC
* Output Delay Time, OFF to ON- 60 µs nom/1 ms max
* Output Delay Time, ON to OFF- 200 µs nom/1 ms max
* Output Delay Time, ON to OFF- 200 µs nom/1 ms max
* Current per point- 0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F)
* Current per module- 16 A @ 50 °C (122 °F) linear derating 10 A @ 60 °C (140 °F)
* Maximum Output Current Rating-Point- 0.5 Amps at 50 Celsius, 0.35 Amps at 60 Celsius
* Maximum Output Current Rating-Module- 16 Amps at 50 Celsius, 10 Amps at 60 Celsius
* Power Dissipation (Max)- 4.8 Watts at 60 degrees Celsius
* Backplane Current at 5 Volts- 300 milliamps
* Removeable Terminal Block(s)- 1756-TBCH, 1756-TBS6H
* Isolation Voltage- 50 Volts Continuous
