* Features
* Overload Protection
* Industrial-grade Metal Housing
* Cord Retention Tray
* Work under High Temperature
* Adjustable Mounting Brackets
* IEC Receptacle Locking
* Type- Basic
* Phase- Single Phase
* Input:-
* Nominal Input Voltage ( Vac )- 200 ~ 240
* Input Frequency ( Hz )- 50 / 60
* Maximum Input Current ( A )- 16 (UL), 16 (CE)
* Input Connector Type- IEC C20 x 1
* Power Cord Length (ft.)- 10
* Power Cord Length (m.)- 3.05
* Output:-
* Output Voltage ( V )- Depends on Input
* Overload Protection- Circuit Breaker
* Over Current Protection (Each Bank) ( A )- 20
* Outlet(s) - Total- 8
* Outlet(s) - Rear- 8
* Installed Rack Height (U)- 1
* Form Factor- 1U Vertical Rackmount, 1U Horizontal Rackmount, Undercounter Installation Supported
* Enclosure Construction- Steel
* Color- Black
* Cord Retention Tray- Yes
* IEC Receptacle Locking- Yes
* External Site Ground Pin- Yes
* Adjustable Mounting Brackets- 2 Set (L-short, L-long)
* Dimensions (WxHxD) (in.)- 17.5 x 1.75 x 1.5
* Dimensions (WxHxD) (mm.)- 445 x 44.5 x 38.1
* Weight (lbs.)- 4.41
* Weight (kg.)- 2
| storage_Type | No |
|---|---|

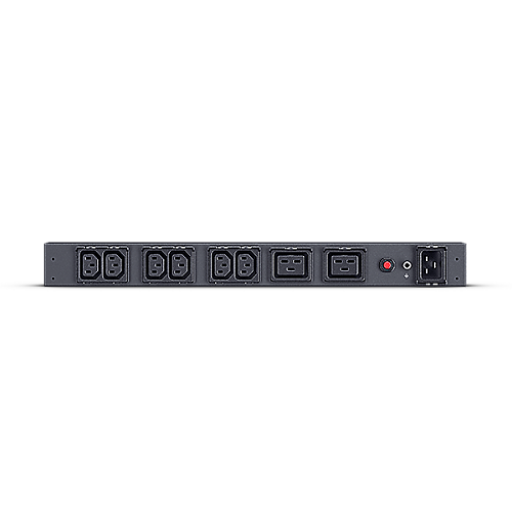

| Manufacturer Part No | PDU20BHVIEC8R |
| Manufacturer | CyberPower |
| Datasheet | No |
