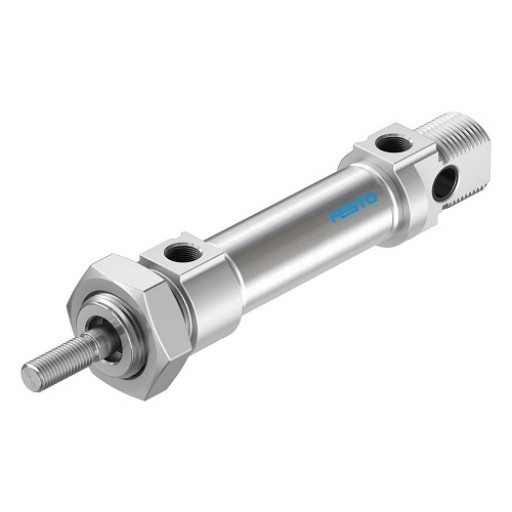

Festo DSNU-20-25-PPV-A, ISO Cylinder

Stroke- 25 mm
Piston diameter- 20 mm
Piston rod thread- M8
Cushioning- Pneumatic cushioning, adjustable at both ends
Mounting position- optional
Conforms to standard- ISO 6432
Piston-rod end- Male thread
Design- Piston, Piston rod, Cylinder barrel
Position detection- Via proximity switch
Symbol- 00991235
Variants- Piston rod at one end
Operating pressure- 0.1 MPa ... 1 MPa
Operating pressure- 1 bar ... 10 bar
Mode of operation- Double-acting
Operating medium- Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium- Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC- 2 - Moderate corrosion stress
LABS (PWIS) conformity- VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14- Class 6 according to ISO 14644-1
Moving mass for 0 mm stroke- 44 g
Additional moving mass per 10 mm stroke- 4 g
Basic weight for 0 mm stroke- 186.8 g
Additional weight per 10 mm stroke- 7.2 g
Type of mounting- With accessories
Pneumatic connection- G1/8
Note on materials- RoHS-compliant
Material piston rod- High-alloy stainless steel
Material cylinder barrel- High-alloy stainless steel
