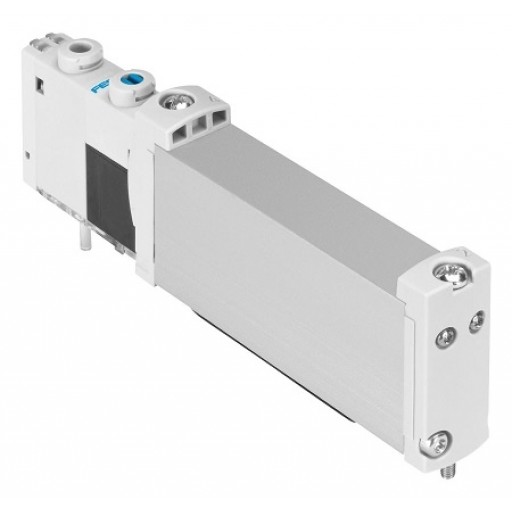

FESTO VUVG-B14-M52-AZT-F-1T1L, Solenoid Valve

Valve function- 5/2-way, monostable
Type of actuation- Electric
Valve size- 14 mm
Standard nominal flow rate (standardised to DIN 1343)- 500 l/min
pneumatic working port- Flange
Operating voltage- 24V DC
Operating pressure- -0.09 MPa ... 1 MPa
Operating pressure- -0.9 bar ... 10 bar
Design- Piston gate valve
Type of reset- Pneumatic spring
Approval- c UL us - Recognized (OL)
Degree of protection- IP65, IP67
Exhaust-air function- With flow control option
Sealing principle- Soft
Mounting position- optional
Manual override- Detenting, Non-detenting
Type of piloting- Pilot actuated
Pilot air supply- External
lap- Overlap
Signal status display- LED
Pilot pressure- 0.15 MPa ... 0.8 MPa
Pilot pressure- 1.5 bar ... 8 bar
Max. switching frequency- 3 Hz
Switching time off- 26 ms
Switching time on- 13 ms
Duty cycle- 100%
Electrical connection- Via sub-base
Type of mounting- On manifold rail
Note on materials- RoHS-compliant
Material seals- HNBR, NBR
Material housing- Wrought aluminium alloy
