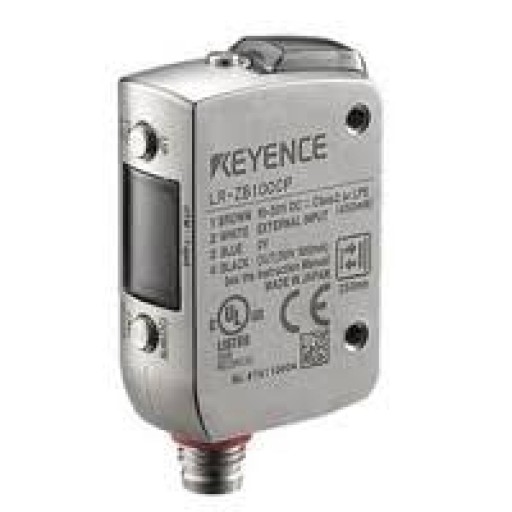

KEYENCE LR-ZB100CP, Rectangular w/ M8 connector Type, 100 mm

Model- LR-ZB100CP
Type- Distance based laser sensor
Shape- Rectangular
Output- PNP
Cable connection- M8 connector, 4-pin
Detectable distance- 35 to 100 mm (650 to 0)*1
Standard detectable deviation- 35 to 50 mm: 1.5 mm, 50 to 100 mm: 3 mm
Display resolution- 2 (0.2 mm)
Spot diameter- Approx. 2 × 1 mm at 100 mm
Response time- 1.5 ms / 10 ms / 50 ms selectable

Light source
Type- Red laser (660 nm)
Laser class- Class 1 laser product (IEC60825-1, FDA (CDRH) Part1040.10*2)

Specifications:-
*Control output-
PNP Open collector,
Applied voltage 30 VDC or less, Control current 100 mA or less,
Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA

*Protection circuit- Protection against reverse power connection, output overcurrent, output surge, reverse output connection

*Output operation- Light-ON / Dark-ON selectable

*External input-
Input time calibration: 35 ms or more ON, 35 ms or more OFF
Laser emission stop: 2 ms or more ON, 20 ms or more OFF
Short-circuit current NPN: 1 mA or less/PNP: 2 mA or less
