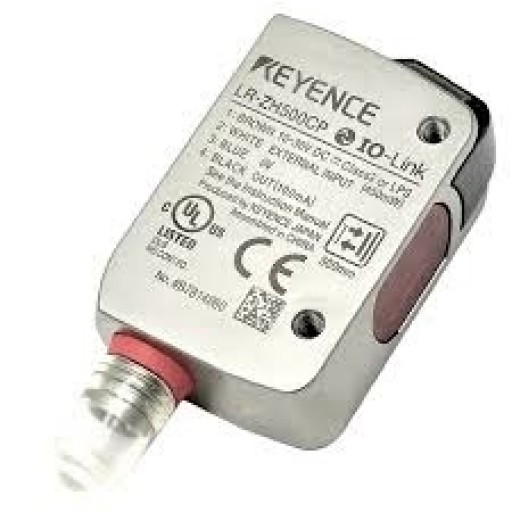

KEYENCE LR-ZH500CP, Self-contained CMOS Laser Sensor

Display resolution- 1 to 5 (1 to 5 mm)
Spot diameter- Approx. ø3 mm
Response time- 1.5 ms / 10 ms / 50 ms selectable

Function-
Indicator-
3-digit 7-segment display (white),
output indicator (yellow),
DATUM indicator (orange),
1 spot indicator (green)

Specifications:
Control output-
*PNP Open collector,
*Applied voltage 30 VDC or less, Control current 100 mA or less,
*Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA
Protection circuit-
*Protection against reverse power connection, output overcurrent, output surge, reverse output connection
Material-
Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating,
Packing/Connector ring: FKM
