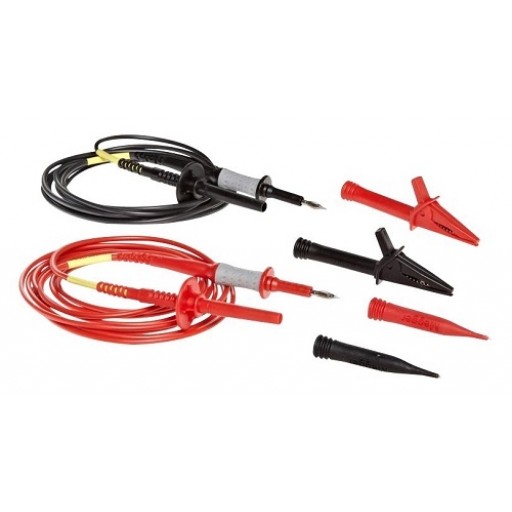

Megger 6220-822, 3m (10ft) Test Lead, 1kV Insulated Probe and Clip Set

Megger 6220-822 3m (10ft) Test LeadClip Type: 1kV insulated probe and clip set for Control Circuit Testing, set of 2Clip capacity: 20mmHV Plug (2' 50mm)Safety CAT rating: Clip = CATIII; Probe = CATIV 600V 3m (10ft) Test Lead, 1kV Insulated Probe and Clip Set, Set of 2 The Megger 6220-822 two-piece control circuit lead set with compact insulated test clips includes one red and one black test lead for use with Megger 5- and 10-kilovolt (kV) insulation resistance testers when testing low-voltage circuits.Each 10' (3 m) test lead has a standard probe tip that is held against the conductor during testing. The set includes two insulated compact test clips that fit onto the test probes for hands-free connection to a conductor where there is limited access. Silicone insulation on the lead wires helps protect hands from shock and heat, resists melting or becoming brittle in hot or cold environments, and maintains flexibility better than PVC insulation.The test leads lock into the input jacks on the meter to help ensure a secure connection and reduce risk of shock. The compact test clips measure 1' x 2.2' (25 x 58 mm, W x D, where W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back) and have a 0.7' (18 mm) jaw opening.The insulated clips and leads are rated for a maximum input of 1 kV of direct current (DC) voltage.
