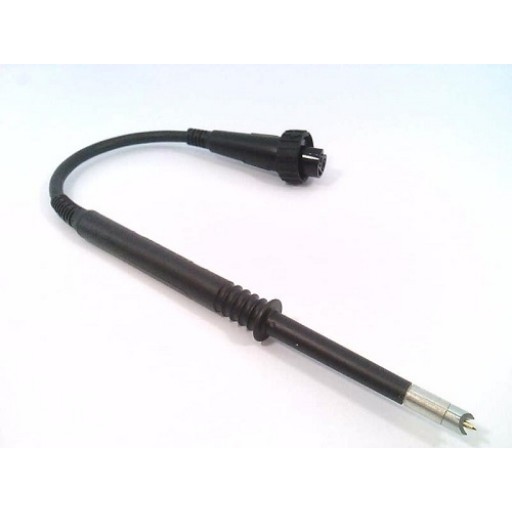

Megger CP1-C, Concentric Probe-Connect (X1)

Megger CP1-C 1006-448 CP1-C Concentric Probe-Connect (X1)Maximum current rating: 10 AConnector to probe tip resistance: 10m ohmProbe tip spacing: Between two outer C tips 7.6 mm Concentric Probe-Connect (X1) Duplex connect concentric handspike with sprung loaded potential tip fitted with a connector socket for easy connection to any connector test lead.The C connection is made via an outer hardened and tempered steel crown with two contact points or tips.The replaceable central potential probe tip has a hardened needlepoint, gold plated for excellent low resistance contact. The P tip is sprung to provide 1.3kg of force and uses a stainless steel spring.Ideal for general applications where a good reliable connection is required on none coated or corroded surfaces. The long probe length and small diameter make this probe ideal for reaching deeply recessed terminal screws. There are also applications where connection to rivet heads or screw/bolt heads are required. To further limit the possibility of damage to test piece waffle tip, sometimes referred to a serrated tip is available as an option.Duplex connect test lead system for use with any Megger 10 A DLRO and BT51 instrumentsThe Megger DLRO duplex connect four terminal test lead system is designed to provide the most cost effective and convenient way to provide the user with all of the test lead terminations and lead lengths required for the many different applications encountered in low resistance testing. At the center of this unique test lead system is a bespoke connector allowing terminations such as kelvin clips or duplex test probes to be changed as required. There are two connector versions, one being fitted with indicator LEDs that operate with the DLRO10 range of instruments.
