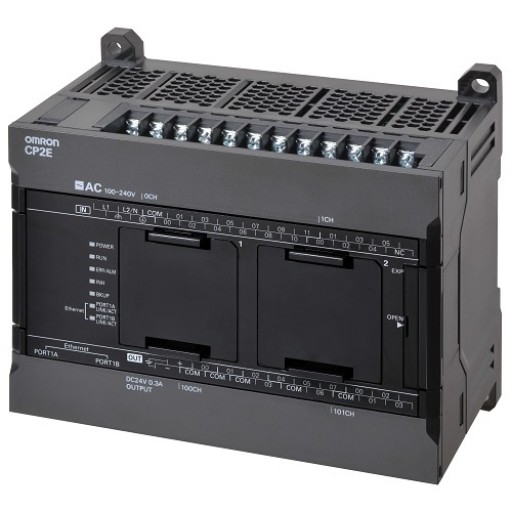

Omron CP2E-N30DT1-D, CP2E series compact PLC - Network type; 18 DI, 12DO; PNP output; Power supply 24 VDC; 10 kStep Program memory

Supply voltage type- DC
Input type- PNP/NPN
Number of digital inputs- 18
Output type- PNP
Number of digital outputs- 12
Program capacity- 20 K steps
Data memory capacity- 16 K words
Logic execution time- 0.23 µs
Communication port(s)- Ethernet TCP/IP
Number of Ethernet ports- 2
Communication option(s)- Serial RS-232C, Serial RS-422, Serial RS-485
Number of encoder input channels- 6
Max. encoder input frequency- 100 kHz
Max. number of PTP axes- 4
Max. pulse output frequency- 100 kHz
Max. number of analogue I/O channels- 32
Max. number of local I/O points- 150
Max. number of expansion units- 3
Built-in auxiliary 24 VDC output- 0 mA
Operating temperature range- -20-60 °C
Product Height (unpacked)- 90 mm
Product Width (unpacked)- 130 mm
Product Depth (unpacked)- 80 mm
Product Weight (unpacked)- 565 g
