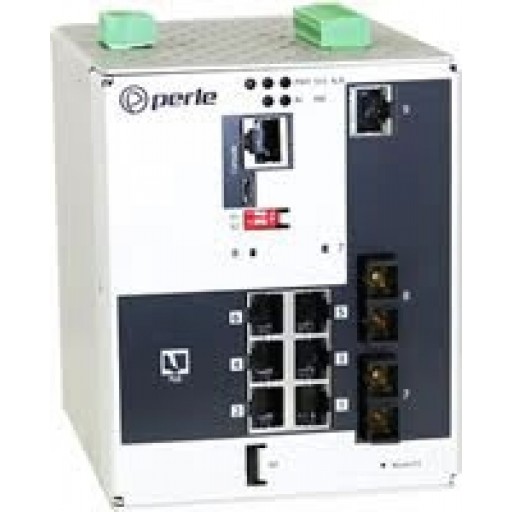

Perle IDS-509FPP, 9 port Compact DIN Rail Switch

* Simple deployment- Zero-touch discovery using Dynamic Host Control Protocol (DHCP), Perle’s “Fast Setup” for first time installation, provides simple deployment in Ethernet environments

* PD Power Reset- Ideal for remotely resetting equipment, this configurable function performs a power reset to attached Powered Devices (PDs). This is achieved by disabling and then re-enabling PoE on the desired Ethernet copper port.

* Security- 802.1X, port security, Secure Shell (SSHv2); SNMPv3 provides encrypted administrator traffic during CLI and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.

* Resiliency-
* STP, RSTP and MSTP protocols for fast recovery.
* MRP (IEC 62439-2) for fast convergence in industrial ring networks. Prevents a switch loop scenario with recovery time of 10 ms or better.
* Perle’s P-Ring protocol for configuring a ring network using standard spanning tree protocols.
* Link Standby is a link recovery feature for two links that provides a simple alternative to spanning tree protocols for link redundancy
* Buffered Real Time Clock backup

* Manageability-
* Web Device Manager, Telnet/SSH, HTTPS access, SNMP and Perle’s PerleView NMS for centralized management
* Use an IPv4 or IPv6 address
* In-band management via RJ45 or USB serial port
* Removable MicroSD flash for configuration files and firmware backup and restoration
* Power over Ethernet allocation on a per-port basis

* Industrial Ethernet Protocol Support- Manage Perle IDS-500 switches via PLC, NMS, HMI or SCADA systems using PROFINET or Modbus TCP.

* Rugged design for harsh environments-
* Corrosion resistant case
* Programmable Controller Safety certified
* Certified for hazardous locations
* Extended industrial temperature models

* Real-time Ethernet performance-
* Fast wire-speed, store and forward switching
* Auto-sensing for speed and duplex
* Auto-mdi/mdix-crossover works with straight and crossover cables
