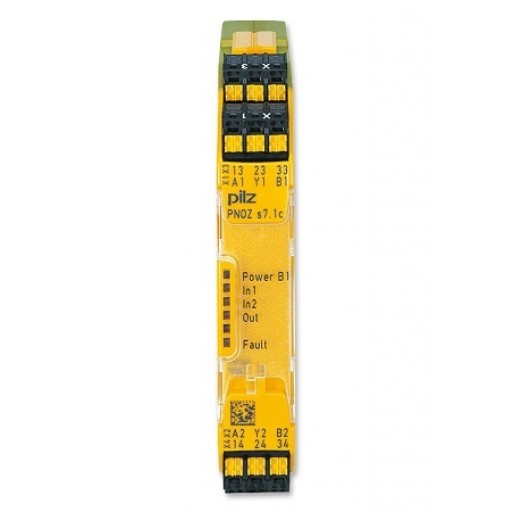

Pilz 751107, General Purpose Relay, PNOZ s7 Series, Interface, 4PST-NO, SPST-NC

Pilz 751107, General Purpose Relay, PNOZ s7 Series, Interface, 4PST-NO, SPST-NC

* Supply voltage range from 24 to 24V, 2W power consumption DC
* 1 number of inputs, AgCuNi relay contact material
* Approval: CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV
* Plug-in terminal style
* 100mm height, 17.5mm width, 120mm depth
* Ambient temperature range from -10 to 55°C
* Spring-loaded connection terminal
* PC housing material

Availability: In stock

Excl. Tax: £0.00 Incl. Tax: £0.00

Qty:

Pilz 751107, General Purpose Relay, PNOZ s7 Series, Interface, 4PST-NO, SPST-NC

Manufacturer- PILZ
Manufacturer Part No- 751107
Product Range- PNOZ s7 Series
Also Known As- PNOZ s7 C 24VDC 4 n/o 1 n/c
Coil Voltage- 24VDC
Product Range- PNOZ s7 Series
Contact Current- 6A
Contact Voltage AC Nom- 240V
Contact Material- Silver Tin Oxide, Gold
SVHC- No SVHC (27-Jun-2024)
Contact Configuration- 4PST-NO, SPST-NC
Relay Mounting- DIN Rail
Relay Terminals- Spring Clamp
Contact Voltage DC Nom- 24V
IP Rating- IP20, IP40, IP54
