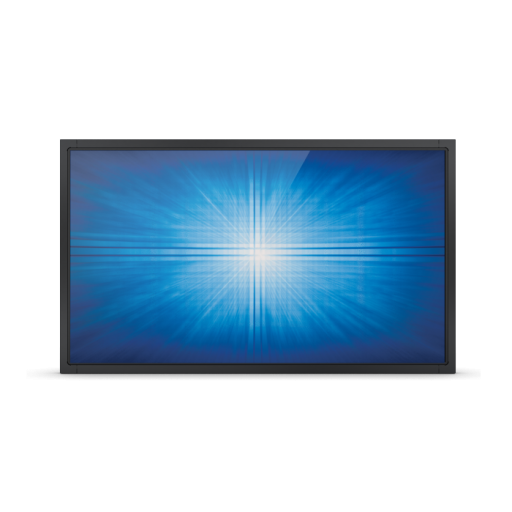

Elo 2794L, 27" Open Frame Dual Touchscreen- E329077

Be the first to review this product

Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes

HDMI, VGA & Display Port video interfaces

10-touch TouchPro™ projected capacitive (PCAP) with two-touch Thru-glass capabilities

Availability: Request for Price

Excl. Tax: £0.00 Incl. Tax: £0.00

Part Number(s):- IntelliTouch (Worldwide)- E329077

Enclosure Color- Black

Touch Interface- TouchPro PCAP, IntelliTouch DT- USB, IntelliTouch, IntelliTouch ZB- Dual serial/USB

Diagonal Size- 27'' diagonal, Active matrix TFT LCD (LED)

On Screen Display:-

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Aspect Ratio- 16:9

Active Area (mm)- 23.53" x 13.23" / 597.6mm x 336.15mm

Resolution- 1920 x 1080

Viewing Angle- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors- 16.7 million

Contrast Ratio- 3000:1

Power Supply- External DC - Optional power brick (sold separately)

Input power connector (Monitor)- Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

Input Voltage- 12VDC +/- 5%

Dimensions- Bezel: 24.93" x 14.74" x 1.65" / 633.2mm x 374.4mm x 41.8mm, Zero-Bezel: 25.36" x 15.29" x 1.56" / 644.2mm x 388.4mm x 39.6mm

Shipping Box Dimensions- 30.79" x 20.87" x 7.87" / 782mm x 530mm x 200mm

Weight (Unpackaged)- 16.1 lbs / 7.3 Kg

storage_Type N/A
Manufacturer Part No E329077
Manufacturer Elo Touch Solutions
Datasheet No
