Part Number(s)-

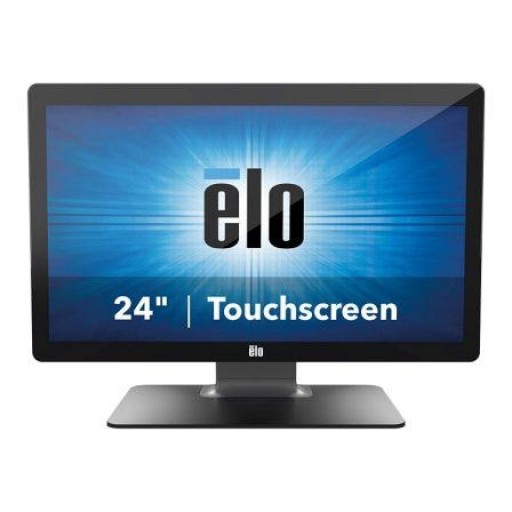

With Stand - E351806
Without Stand - E126288
Enclosure Color- Black
Touch Technology & Capacity- PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size- 23.8'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio- 16:9
Active Area (mm)- 20.75" x 11.67" / 527.04 mm x 296.46 mm
Resolution- 1920 x 1080 @ 50, 60Hz
Viewing Angle- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors- 16.7 million
Brightness (typical)- LCD Panel: 250 nits, TouchPro PCAP: 225 nits
Response Time-total (typical)- 16 msec
Contrast Ratio- 1000:1
Touch Interface- USB
Surface Treatment- Clear
Input Connector- Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting- 4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (without Stand)- 13.28" x 22.62" x 1.69" / 337.2 mm x 574.6 mm x 42.8 mm
Monitor Dimensions (with Stand)- 17.04" x 22.62" x 9.17" / 432.9 mm x 574.6 mm x 233 mm
| storage_Type | No |
|---|---|
| Manufacturer Part No | E351806 |
| Manufacturer | Elo Touch Solutions |
| Datasheet | No |
