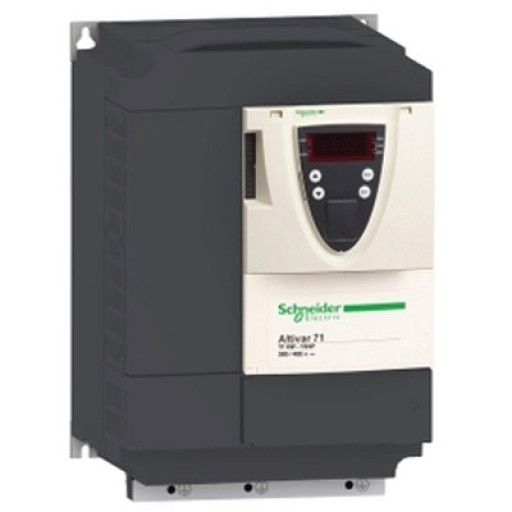

Schneider ATV71HD15N4Z, Variable speed drive, ATV71, 15kW, 20HP, 380 to 480V, 60.2dB, EMC filter, without graphic terminal,CANopen, Modbus

* Range of product- Altivar 71
* Product or component type- Variable speed drive
* Product specific application- Complex, high-power machines
* Component name- ATV71
* Motor power kW- 15 kW, 3 phases at 380...480 V
* Motor power hp- 20 hp, 3 phases at 380...480 V
* Maximum motor cable length- 50 m shielded cable, 100 m unshielded cable
power supply voltage- 380...480 V - 15...10 %
* Network number of phases- 3 phases
* Line current- 39 A for 480 V 3 phases 15 kW / 20 hp, 48 A for 380 V 3 phases 15 kW / 20 hp
* EMC filter- Integrated
* Assembly style- With heat sink
* Variant- Without remote graphic terminal
* Apparent power- 31.6 kVA at 380 V 3 phases 15 kW / 20 hp
* Prospective line Isc- 22 kA for 3 phases
