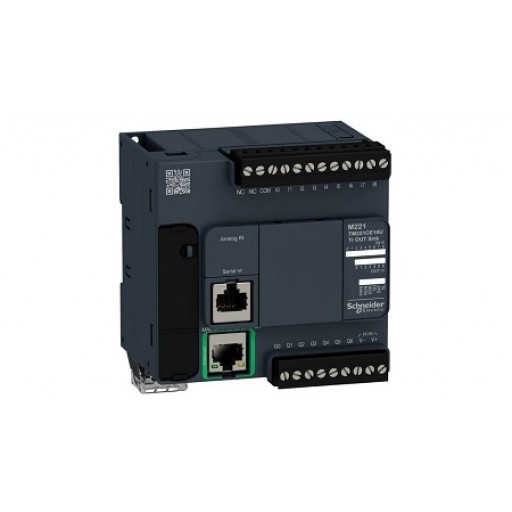

Schneider TM221CE16U, logic controller, Modicon M221, 16 IO, transistor, NPN, Ethernet

Be the first to review this product

CONTROLLER M221-16IO TR.NPN ETHERNET This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete, 4 fast inputs, 7 sink transistor outputs, 2 fast outputs with PNP transistor output with 10bit resolution. The I/O are connected on removable screw terminal blocks. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface, Ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, built-in flash memory of 256KB and SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. The Modicon M221 logic controllers are programmed with EcoStruxure Machine Expert - Basic software. It supports DIN rail mount.

Availability: In stock

Excl. Tax: £252.00 Incl. Tax: £302.40

Mounting Type- DIN Rail
Power- 24V DC
Output Type- Transistor NPN
Brand- Schneider
Model Number- TM221CE16U
Manufacturer Series- M221
I/O Points- 16
[Us] Rated Supply Voltage- 24 V DC
Usage/Application- PLC
Number of Inputs- 9 Digits
Minimum Order Quantity- 1

Range of product- Modicon M221
product or component type- Logic controller
[Us] rated supply voltage- 24 V DC
Discrete input number- 9, discrete input 4 fast input conforming to IEC 61131-2 Type 1
Analogue input number- 2 at 0...10 V
Discrete output type- Transistor
Discrete output number- 7 transistor 2 fast output
Discrete output voltage- 24 V DC
Discrete output current- 0.5 A

storage_Type No
Manufacturer Part No TM221CE16U
Manufacturer Schneider
Datasheet No
