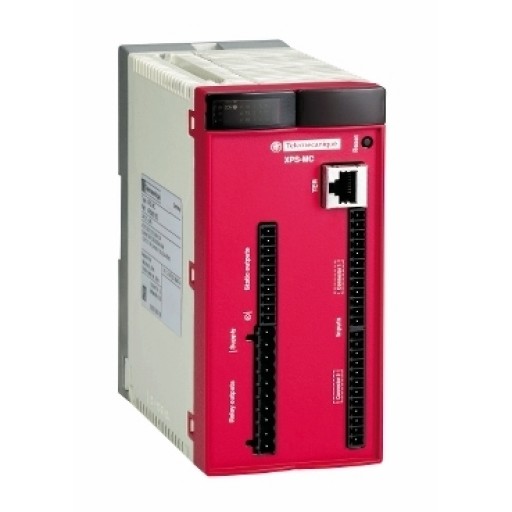

Schneider XPSMC16ZP, safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs

* Range of product- Preventa Safety automation
* Product or component type- Configurable safety controller
* Safety module name- XPSMC
* Safety use category:-
* Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1
* PLE maximum conforming to ISO 13849-1
* SIL 3 maximum conforming to IEC 61508

* Type of start- Configurable
* [Us] rated supply voltage- 24 V DC - 20...20 %
* Number of inputs- 16
* Synchronisation time between inputs- Depending on configuration selected
* Power consumption in W- 12 W
* Input protection type- External fuse 16 A
* [Uc] control circuit voltage- 28.8 V
* Maximum line resistance- 100 Ohm <2000 m
* Local signalling- 32 LEDs
* Mounting support- Mounting plate
* Depth- 153 mm
* Height- 151.5 mm
* Width- 74 mm
* Net weight- 0.82 kg
