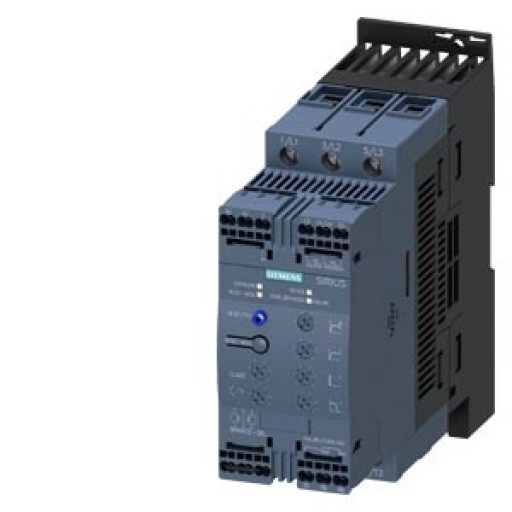

Siemens 3RW4036-2BB04, Soft Starter

Primary brand- Siemens
Main function- Soft starter
Product series / family name- SIRIUS 3RW40 series
Network frequency- (input) 50-60 Hz
Functions-
* Basic performance soft-starter
* Soft starting/ramp-down
* Voltage ramp
* Integral bypass contact system
* Intrinsic device protection
* Adjustable current limitation
* 1 parameter sets
* 2 controlled phases

Design- integrated bypass, ATEX compliant
Supply voltage (AC)- 200Vac-480Vac (208Vac / 240Vac / 400Vac)
Type of network- 3-phase (3P / 3AC)
Rated operating voltage (Ue)200-480 V
Connection typeSpring-type connection
Control Voltage (AC)- 24Vac
Control Voltage (DC)- 24Vdc
Protection functions- Motor overload
Mounting mode- Wall
Degree of protection- IP00
Dimensions- Frame size S2, W55mm x H144mm x D170mm
