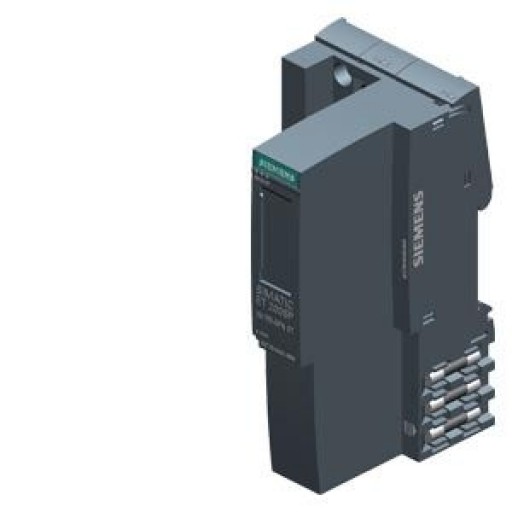

Siemens 6ES7155-6AU01-0BN0, SIMATIC ET 200SP, PROFINET interface module IM 155-6PN Standard

Product type designation- IM 155-6 PN ST

HW functional status- From FS03

Firmware version- V4.2

● FW update possible- Yes

● I&M data- Yes; I&M0 to I&M3

● Module swapping during operation (hot swapping)- Yes; Single hot swapping

● Isochronous mode- No

Engineering with:-

● STEP 7 TIA Portal configurable/integrated from version- V14

● STEP 7 configurable/integrated from version- V5.5 SP4

● PROFINET from GSD version/GSD revision- GSDML V2.35

Supply voltage:-

Rated value (DC)- 24 V

permissible range, lower limit (DC)- 19.2 V

permissible range, upper limit (DC)- 28.8 V

Reverse polarity protection- Yes

Short-circuit protection- Yes

Input current:-

Current consumption (rated value)- 450 mA

Current consumption, max.- 550 mA

Inrush current, max.- 3.7 A
