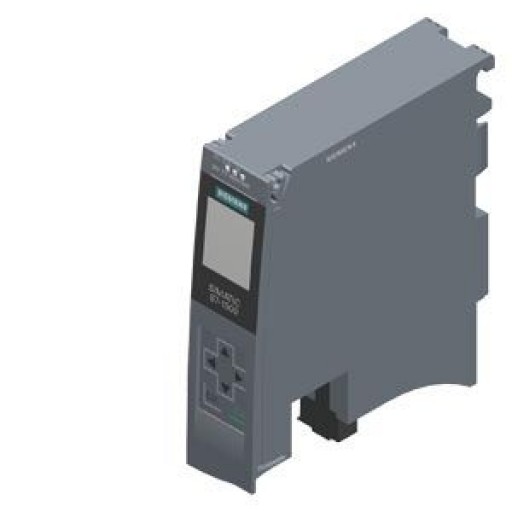

Siemens 6ES7513-1RM03-0AB0, CPU 1513R-1 PN, 600KB program/2,5MB data

Product type designation- CPU 1513R-1 PN

HW functional status- from FS04

Firmware version- V4.1

● FW update possible- Yes

● I&M data- Yes; I&M0 to I&M3

● Isochronous mode- No

● SysLog- Yes

Display- Screen diagonal [cm]- 3.45 cm

Number of keys- 8

Mode buttons- 2

Supply voltage:-

Rated value (DC)- 24 V

permissible range, lower limit (DC)- 19.2 V

permissible range, upper limit (DC)- 28.8 V

Reverse polarity protection- Yes

Infeed power to the backplane bus- 10 W

Power consumption from the backplane bus (balanced)- 5.5 W

Power loss, typ.- 3.4 W

Number of slots for SIMATIC memory card- 1

SIMATIC memory card required- Yes

Work memory:-

● integrated (for program)- 600 kbyte

● integrated (for data)- 2.5 Mbyte

Interface types:-

● RJ 45 (Ethernet)- Yes; X1

● Number of ports- 2

● integrated switch- Yes
