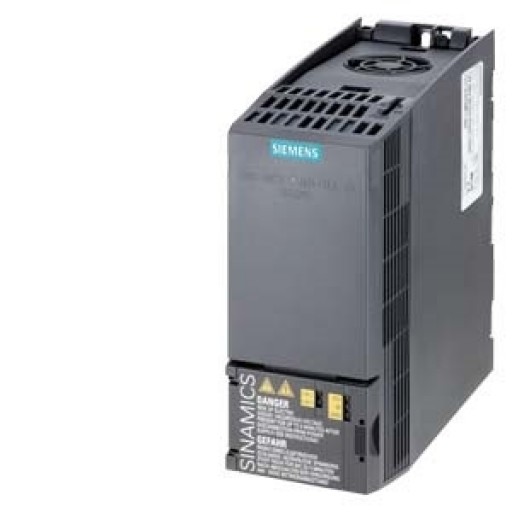

*SINAMICS G120C RATED POWER 0,55KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSAA 173X73X178(HXWXD) EXTERNAL 24V SINAMICS G120C - the compact and versatile frequency converter with optimum functionality for the requirements of various applications, such as conveyor belts, mixers, pumps, fans, and compressors. Further external components are not required due to the certified safety function Safe Torque Off, STO via terminal / with PROFIsafe, which is already integrated.
*Operation/commissioning is performed quickly and simply with a PC via USB or using a Basic Operator Panel or Intelligent Operator Panel. Drive networking is possible via standard fieldbus systems (PROFINET, PROFIBUS), and a memory card slot for cloning parameter sets for intuitive series commissioning is also included. To boost energy efficiency, the converter is equipped with a precise energy-optimized vector control (SLVC) and also features automatic flux reduction. SINAMICS G120C covers the three-phase voltage range from 380 V up to 480 V 3 AC and is available in four frame sizes in a power range extending from 0.55 kW to 18.5 kW. SINAMICS G120C can be adapted to specific user requirements using various options, for example connecting cables, line filters, braking resistors, line reactors and additional accessories.
*These variable-speed units are an integral component of Totally Integrated Automation (TIA), and work in harmony with SIMATIC controllers, for example. The all-rounder SINAMICS G120C is the successor to the MICROMASTER MM420 inverter. SINAMICS the integrated drive family for every application area.
storage_Type | No |
---|---|
Manufacturer Part No | 6SL3210-1KE11-8AF2, 6SL32101KE118AF2 |
Manufacturer | Siemens |
Datasheet | No |
